NovaDura aluminium lecterns

NovaDura bespoke aluminium lecterns are an alternative method to display interpretation panels for viewing information.

Set at a convenient height and angle, just over 1m from the ground, they allow adults, children and wheelchair users to readily access information.

Manufactured in 3mm aluminium as standard, NovaDura bespoke aluminium lecterns are available to the trade powder coat finished in any of our wide range of stocked RAL colours.

Warrantied for 10 years to UV and atmospheric weathering, they come with a durable anti graffiti stove-finish coating in high gloss or a satin/matt.

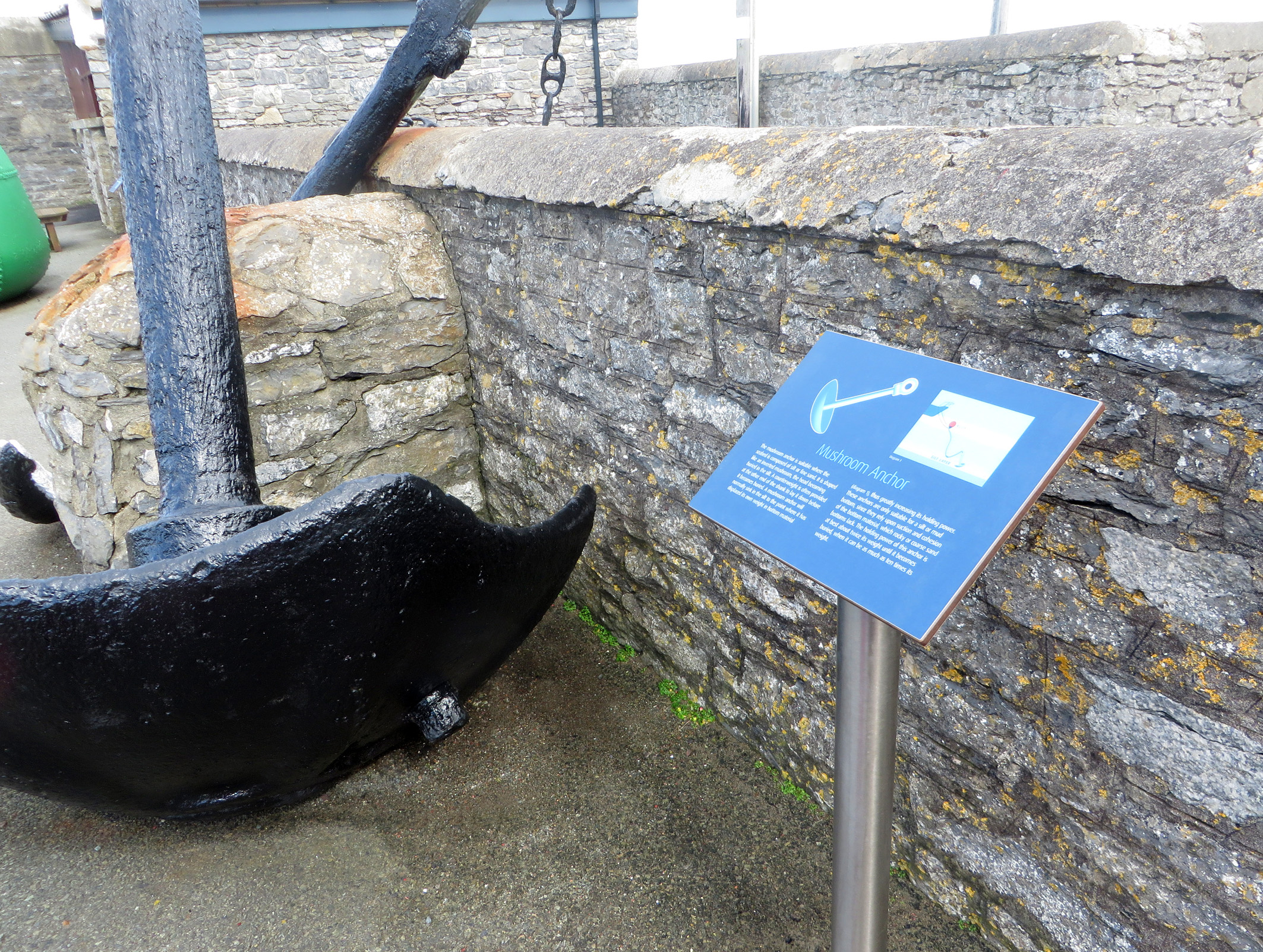

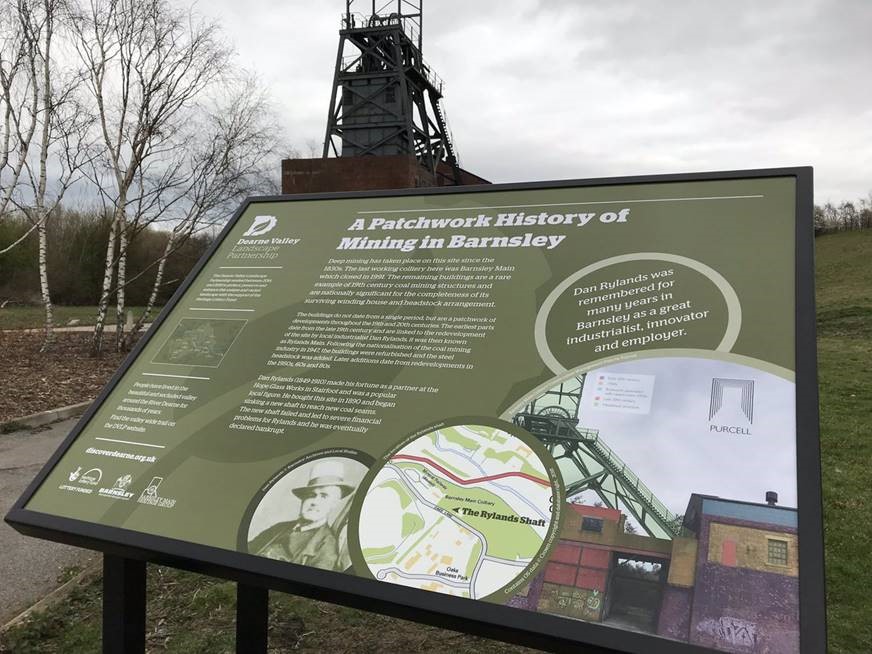

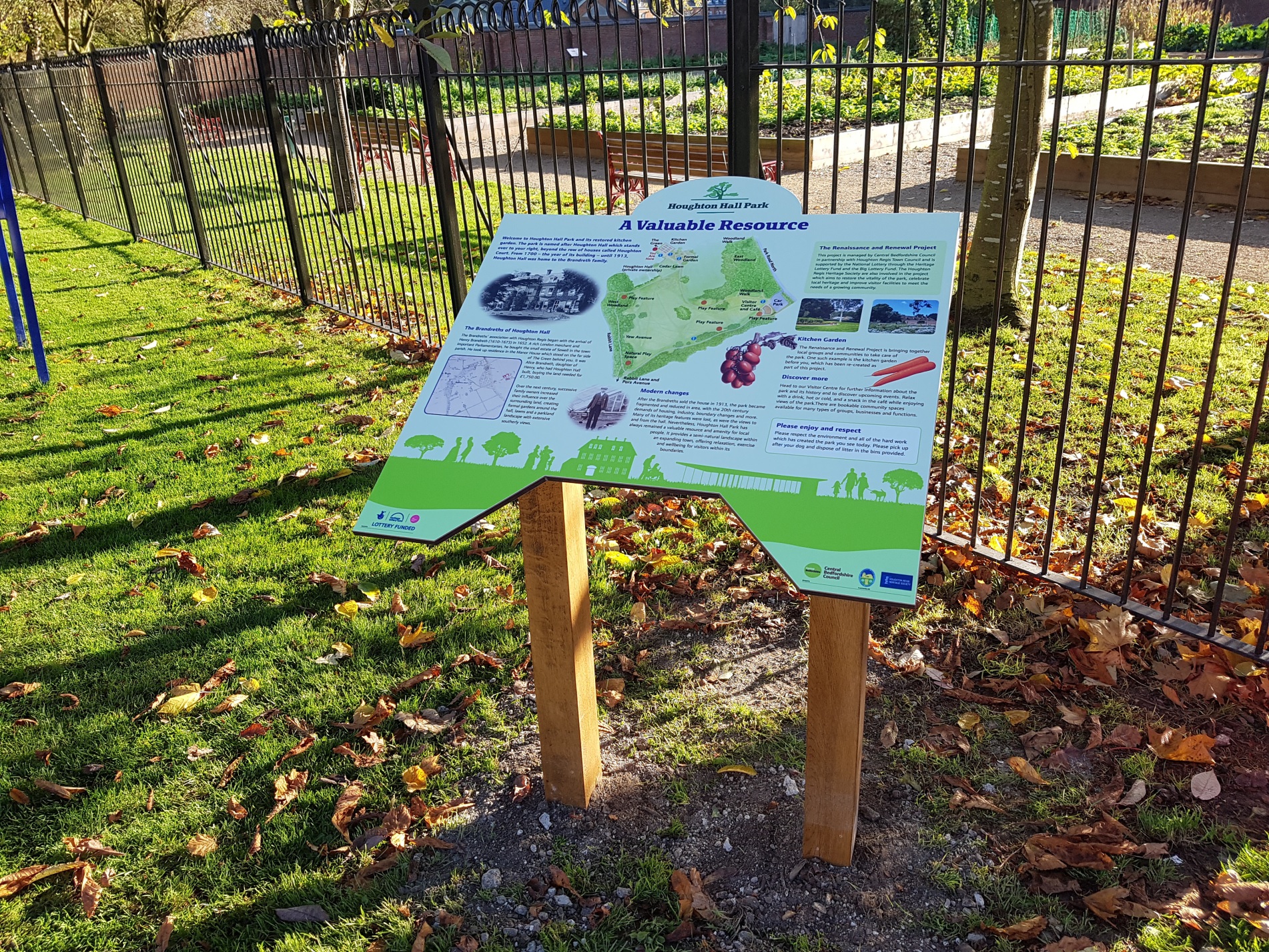

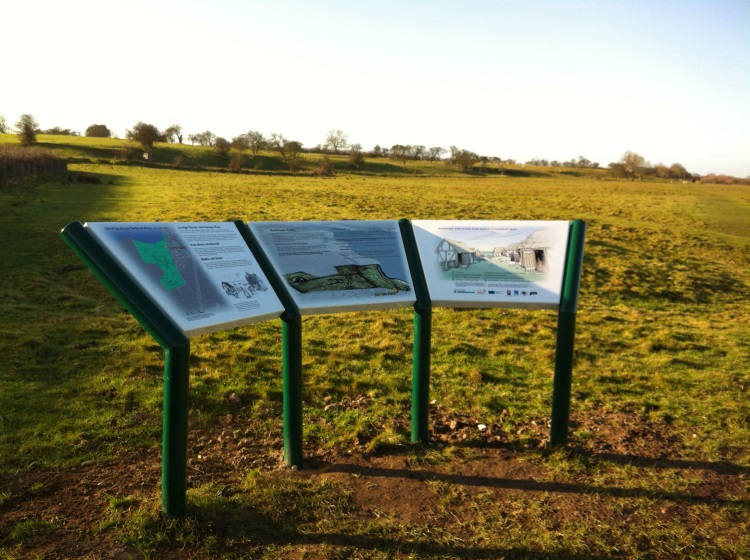

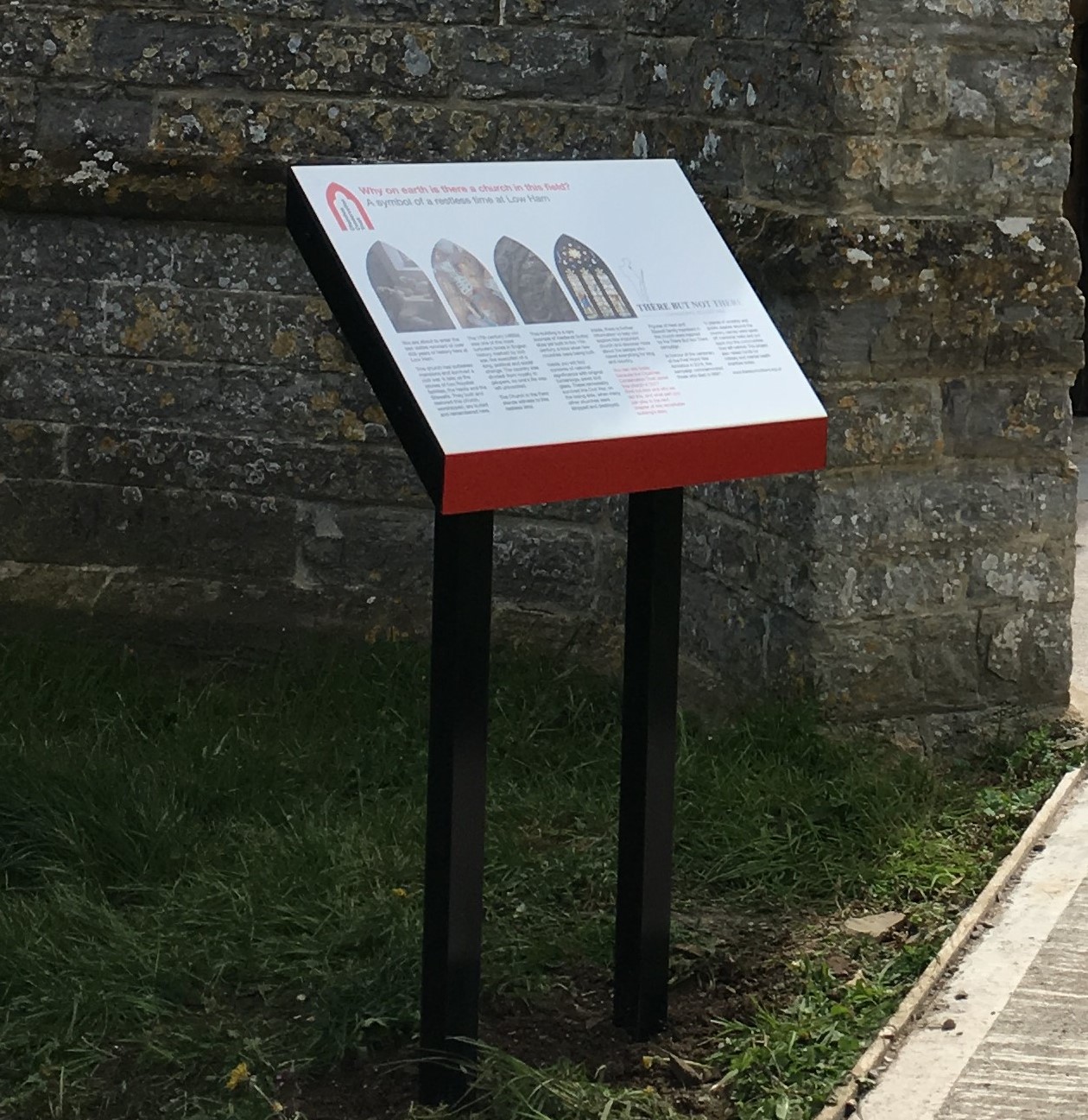

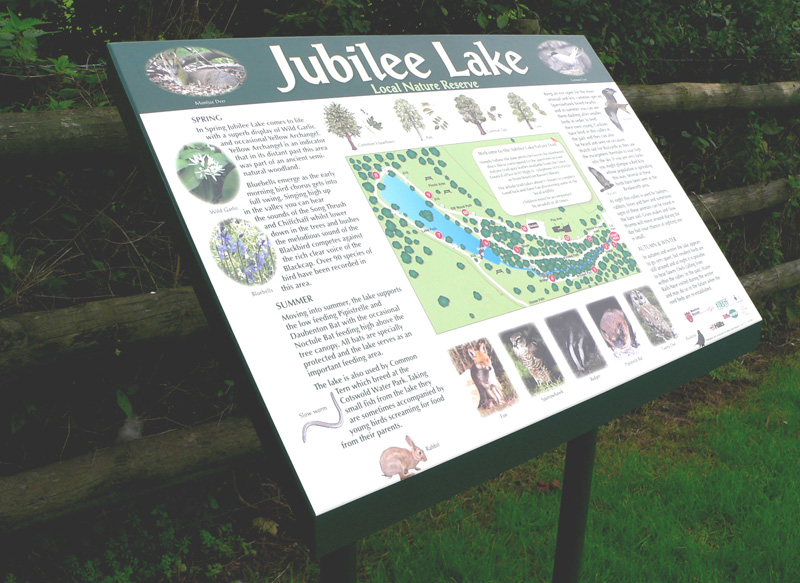

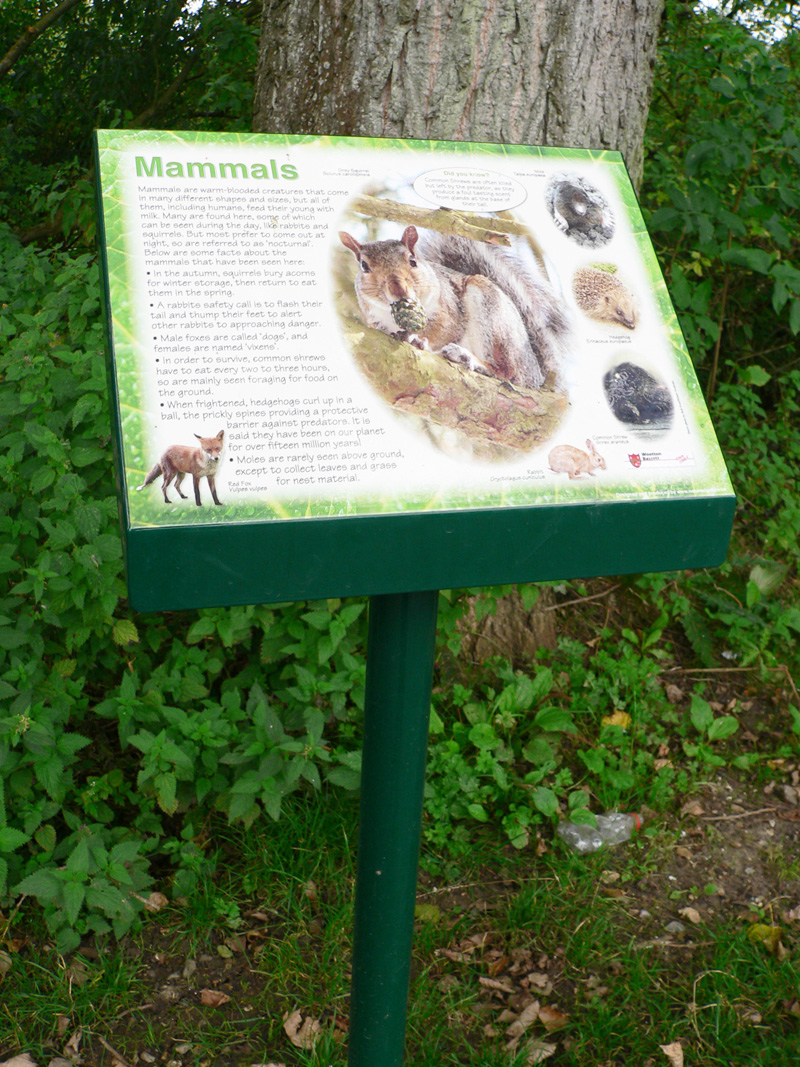

Please check out the gallery below.

Available in 3 main formats:

  1. Regular Tray
  2. Inclined Tray

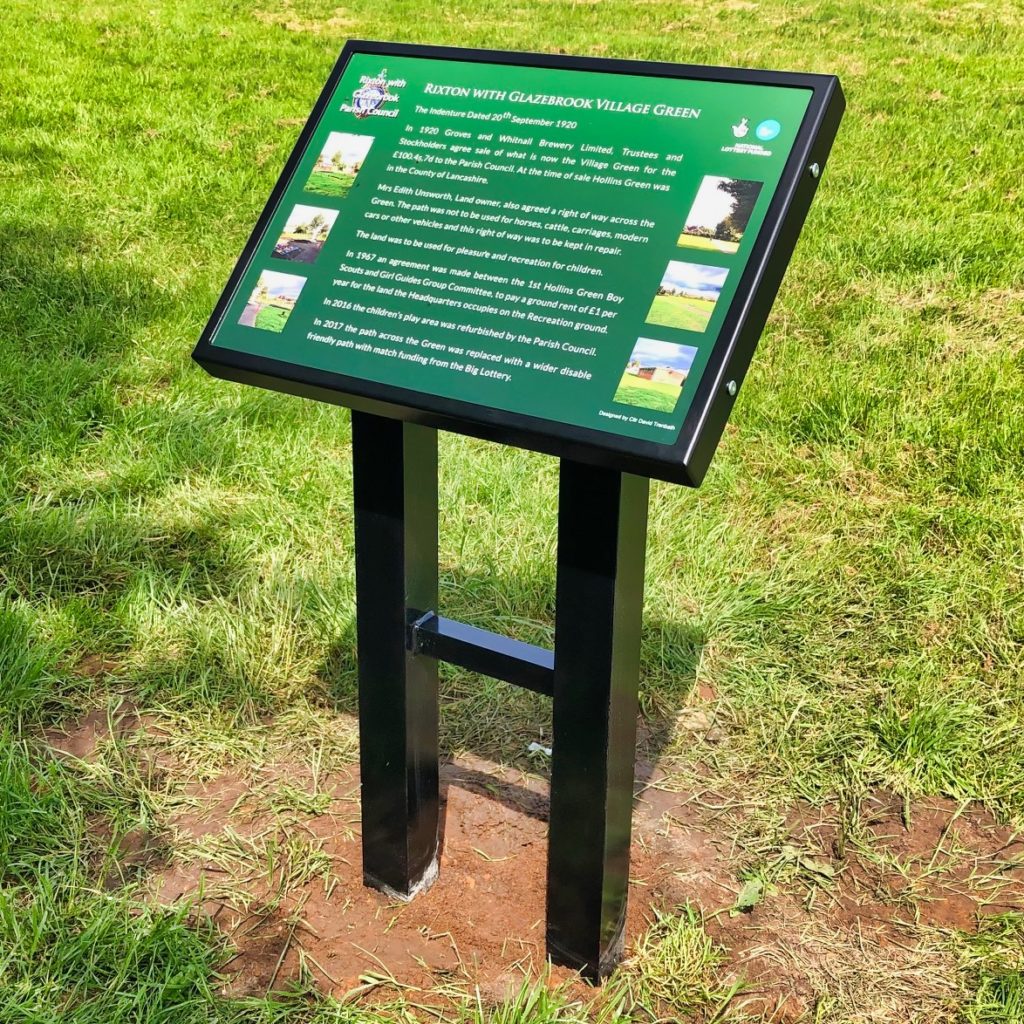

  3. Picture Frame Style

Construction:

Types 1 & 2

  • 2@ 1.6m @ 50mm aluminium box section legs as standard, 76mm round or box by request
  • 1, 2 or 4 legs available dependent of size
  • 120mm square welded footplates to assist ‘burial’ installation (anti-rock)
  • Surface mounted available in 12mm (POA)
  • Legs welded to a 5mm aluminium backing tray @ 45º (30º or 60º by request)
  • Design Tray printed in primaDURA and stove finished, slots over the 5mm backing tray
  • Tray can have regular ‘biscuit tin’ returns – all @ 90º or angled front and rear returns (135º and 45º) that are parallel to the vertical
  • Returns can be specified @ minimum 25mm through to 60mm
  • Fixed using 4 @ stainless security screws through the side returns
  • Powder coated to a stock RAL and finished in satin or gloss

Type 3

  • 2@ 1.6m @ 50mm aluminium box section legs as standard, 76mm round or box by request
  • 1, 2 or 4 legs available dependent of size
  • 120mm square welded footplates to assist ‘burial’ installation (anti-rock)
  • Surface mounted available in 12mm (POA)
  • Legs welded to a 5mm aluminium backing tray @ 45º (30º or 60º by request)
  • Design panel printed in primaDURA or ecoDURA High Pressure Laminate is placed over the 5mm backing tray
  • Picture frame window cut out over-tray, with 25mm top returns and 40mm side returns is clamped over the design panel and fixed using 4 @ stainless security screws through the side returns
  • Powder coated to a stock RAL and finished in satin or gloss





Check out our latest projects HERE.

For more information or quote, please email us  at info@novadura.com or contact us on 01282 227550
