Outdoor Post Mounted Signage Systems
Post mounted signage systems are manufactured using primaDURA aluminium and ecoDURA High Pressure Laminate (HPL) panels for external wayfinding, commercial and public-facing applications.
Available in flat panel and folded tray configurations, systems can be produced in bespoke fabricated shapes or standard rectangular formats depending on project requirements.
Commonly specified across business parks, public infrastructure, visitor environments and wayfinding applications, post mounted signs provide clear visibility and flexible positioning across external environments.
Panels can be installed at height, angled along pathways or positioned to overcome site-specific obstructions and visibility requirements.
Systems are supplied with sign fixing rails or signfix channels to allow secure installation onto aluminium posts or railing structures.
Laser-cut profiles, radius corners and safety-rounded edges are also available for applications where panels extend beyond post widths.
Post mounted signage systems are commonly specified for directional signage, public information displays, visitor wayfinding and infrastructure applications requiring durable long-term external performance.
Mounting & Installation Options
Printed panels are mounted onto square or round aluminium post systems to provide a clean, durable finish for long-term external applications.
Posts can be supplied with dressed welded tops or protective caps depending on the required finish specification.
Both surface-mounted and burial-mounted installation options are available.
Burial-mounted systems typically include approximately 500mm below ground with a separate stabilising base plate designed to reduce movement once concreted into position.
Surface-mounted systems are generally manufactured using fully welded 200mm × 200mm × 12mm base plates suitable for fixing onto concrete or decked surfaces.
Timescales
15 - 20 Working Days
Sizes
Max Panels Size 2.9m×1.5m
Max Posts Length to 2.9m
Std Posts 50/76mm & box
Bespoke fabricated sizes and mounting configurations are available depending on project requirements.
Gatepost mounted sign trays consist of a folded return tray panel fixed between two posts to create a more architectural signage format suitable for entrances, business parks and wayfinding environments.
Tray systems can incorporate secondary interlocking panels to allow double-sided graphics or additional information displays on the reverse.

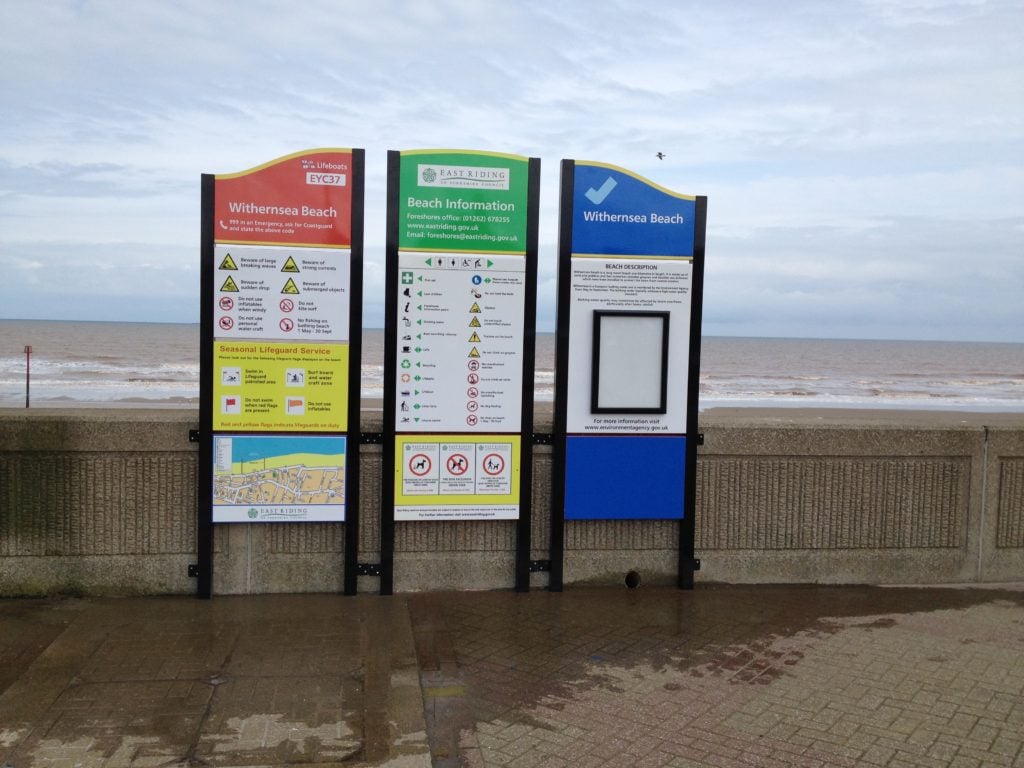

Systems can also be configured as multi-panel installations for directory signage, gateway features and larger wayfinding schemes.
Designed for long-term external use, systems are manufactured using durable primaDURA aluminium or ecoDURA High Pressure Laminate (HPL) panels engineered for exposed public-facing environments.
Panels provide strong resistance to UV exposure, weathering, impact and everyday surface wear whilst maintaining long-term visual consistency and low maintenance requirements.
