Water Level Depth Gauge Boards for Marine & Inland Applications

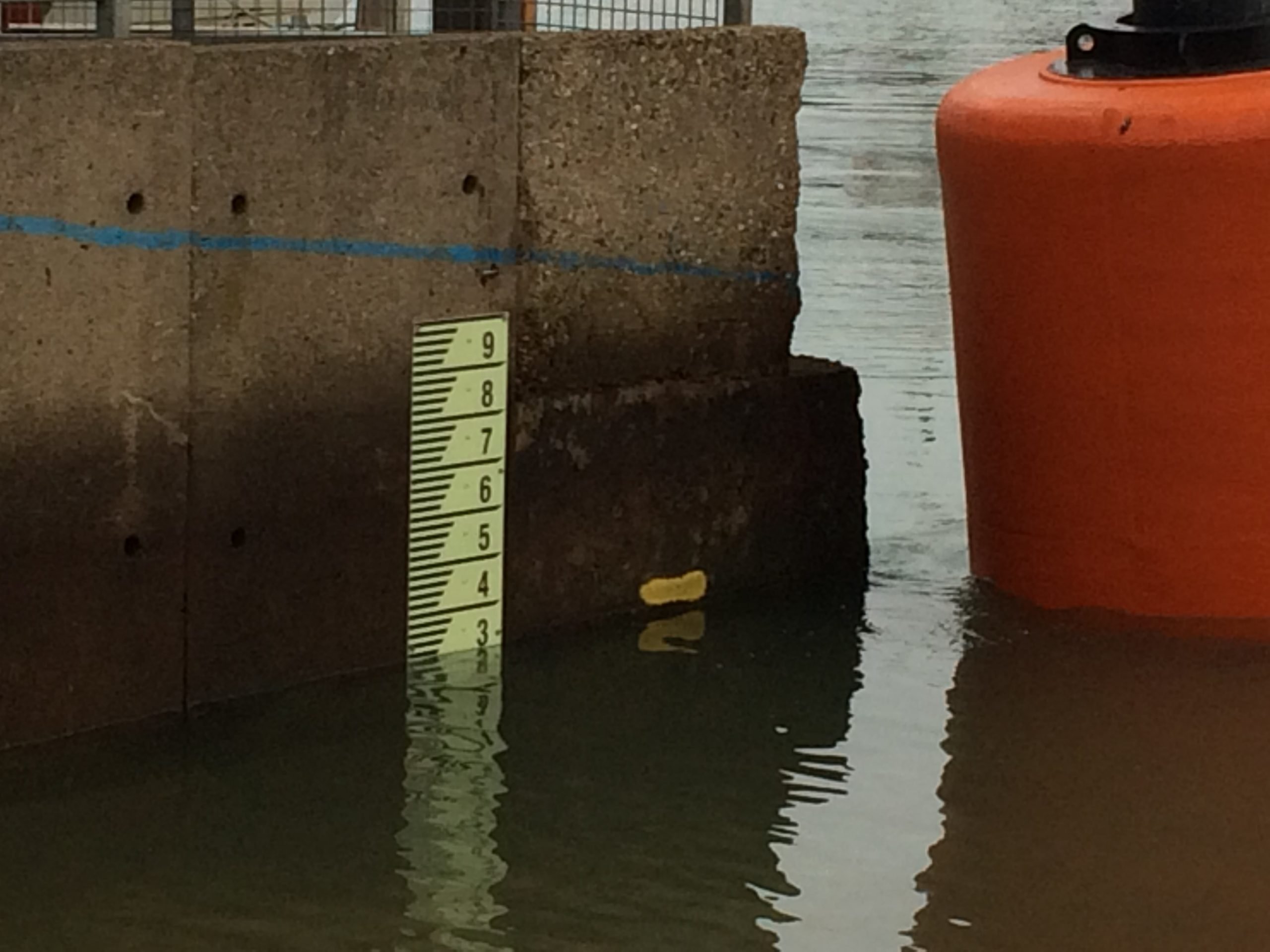

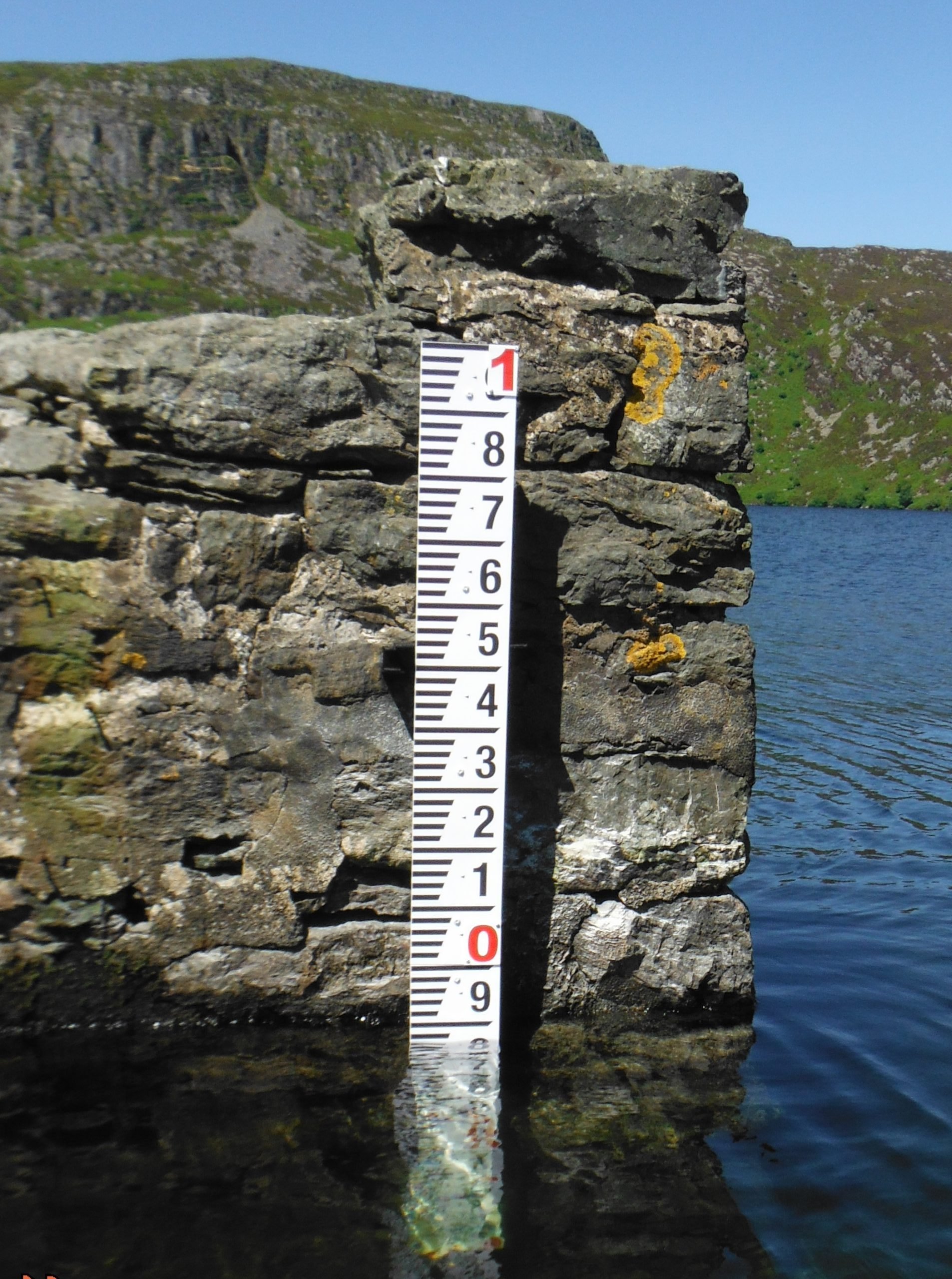

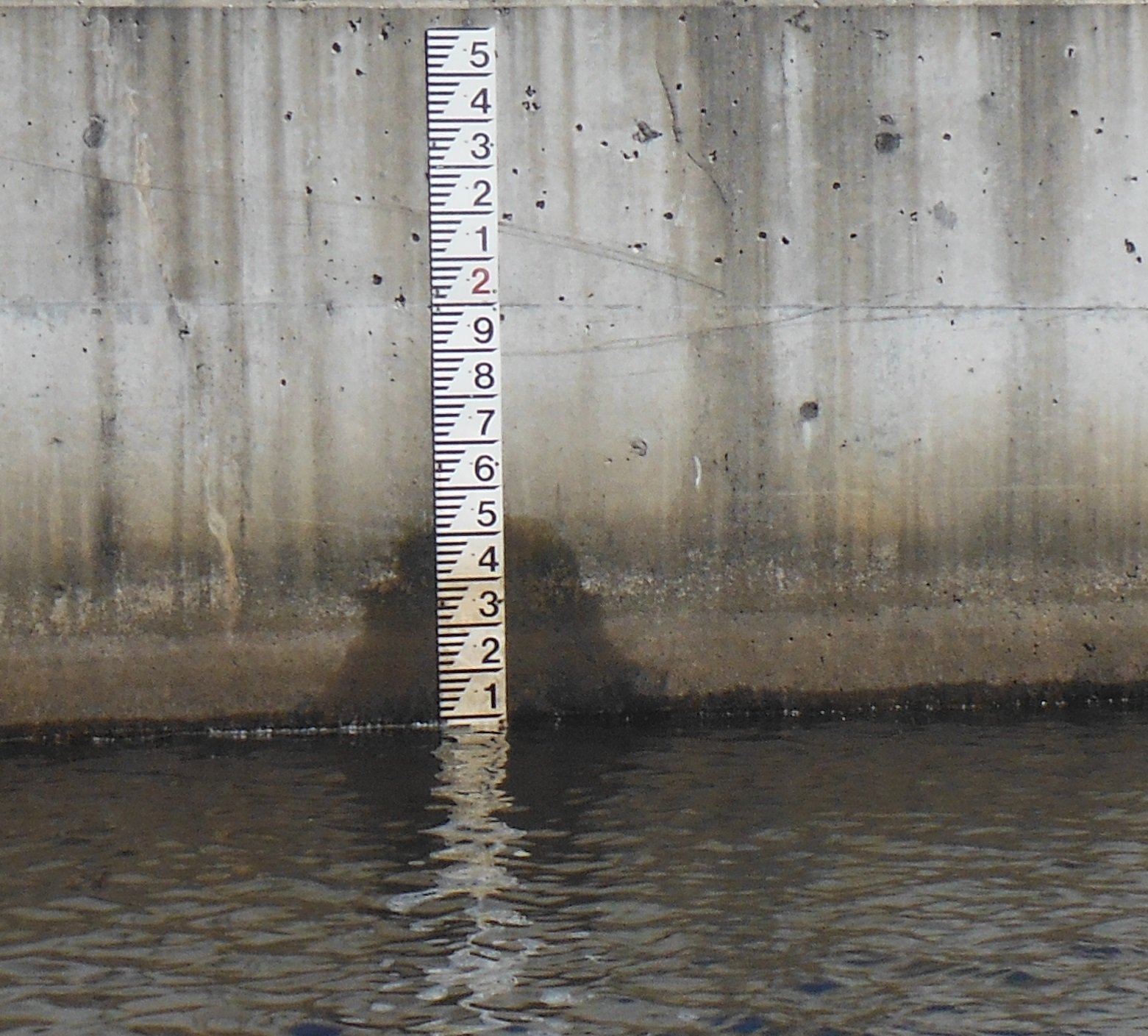

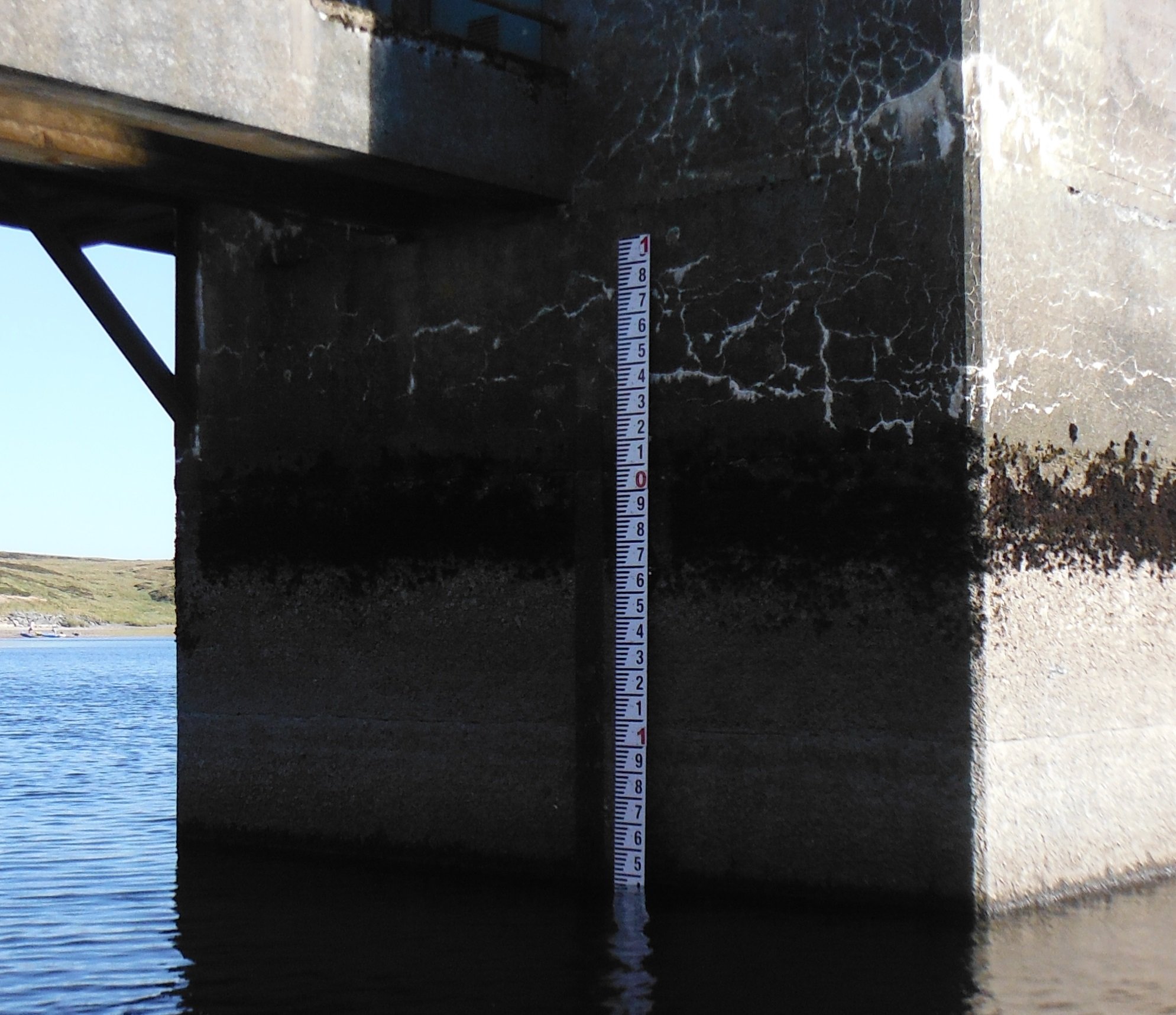

Depth gauge boards are manufactured to provide clear and accurate water level measurement across rivers, reservoirs, canals, locks, harbours and marine navigation environments.
Suitable for both inland and coastal applications, systems are available in standard primaDURA aluminium and photoluminescent primaDURA GLOW formats depending on operational and visibility requirements.
Manufactured using a 3mm encapsulated and stove-finished primaDURA aluminium process, depth gauge boards are engineered for long-term performance across harsh external and marine environments.
Systems provide strong resistance to UV exposure, saltwater, airborne contaminants, abrasion and impact, making them suitable for continuous outdoor use and prolonged water immersion.
NOVADURA depth gauge boards have demonstrated long-term durability across real-world marine environments, including installations operating for over 15 years in exposed coastal conditions.
primaDURA GLOW systems provide enhanced low-light visibility with extended afterglow performance to assist navigation and safety in reduced visibility conditions.
Photoluminescent systems are manufactured to PSPA Class D standards in accordance with:
- DIN 67510 Part 1
- ISO 16069
Products supplied to maritime environments can also include Lloyd’s Register certification and the “Ships Wheel” mark confirming compliance with Marine Equipment Directive and SOLAS requirements.
Designed for demanding environmental conditions, depth gauge boards typically provide an operational lifespan of approximately 20–25 years.
Depth gauge board systems are commonly specified for harbours, marinas, lock systems, coastal infrastructure and inland waterway applications requiring durable long-term environmental performance.
Standards & Compliance
Depth gauge boards are manufactured in accordance with recognised hydrometry, marine and photoluminescent performance standards including:
- BS EN ISO 4373:2008 Hydrometry: Water level measuring devices
- BS 3680 Part 7:2000 – Measurement of liquid flow in open channels
- PSPA Class D photoluminescent performance
- DIN 67510 Part 1 compliance
Systems can also be supplied for marine environments requiring SOLAS and Marine Equipment Directive compliance.
Timescales
15 - 20 Working Days
Sizes
Std: 150×1000 mm (Inland)
300×1000 mm (Coast)
Bespoke sizes are available on request for custom artworks
Photoluminescent depth gauge systems can also be manufactured for low-light marine navigation and public safety applications requiring extended visibility performance.
| Specification | Details |
|---|---|
| Material | Encapsulated 3mm primaDURA aluminium |
| Visibility Option | primaDURA GLOW photoluminescent system |
| Standard Inland Size | 150mm × 1000mm |
| Standard Coastal Size | 300mm × 1000mm |
| Environmental Resistance | UV, saltwater, abrasion and airborne contaminants |
| Marine Compliance | SOLAS & Marine Equipment Directive options available |
| Photoluminescent Standards | PSPA Class D, DIN 67510 Part 1, ISO 16069 |
| Expected Service Life | Typically 20–25 years |
| Installation | Supplied pre-drilled with stainless steel fixings |
Manufactured to meet recognised UK and international standards for hydrometry, marine applications and photoluminescent safety signage.
Standards and approvals include:
- BS EN ISO 4373:2008
- BS 3680 Part 7:2000
- DIN 67510 Part 1
- ISO 16069
- PSPA Class D
Products supplied to marine environments can also be specified to align with SOLAS and Marine Equipment Directive requirements.
Standard Inland Format
1000 × 150 × 3mm
Standard Coastal / Marine Format
1000 × 300 × 3mm

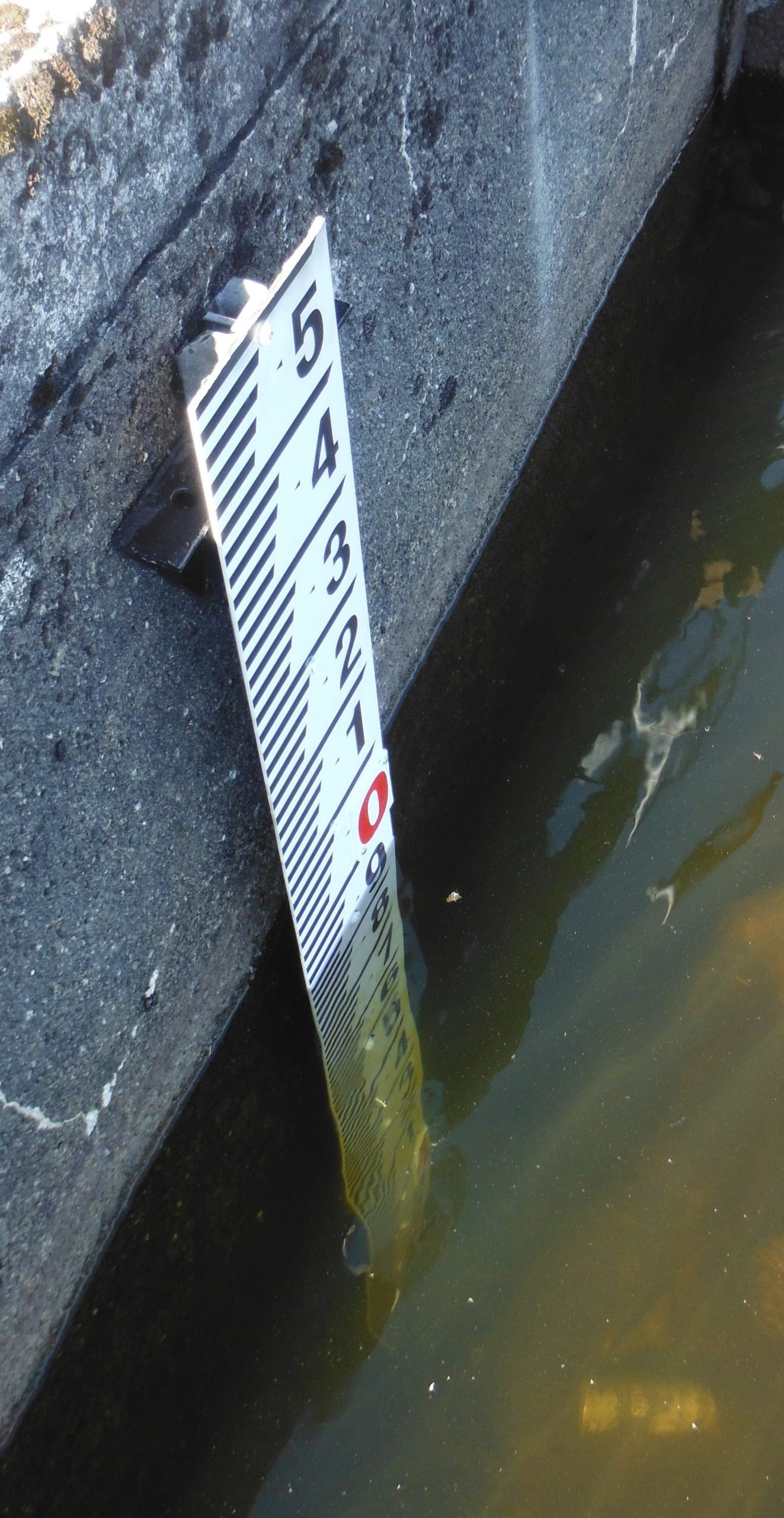

Supplied with pre-drilled fixing holes and stainless steel fixings for secure installation.
Optional configurations include:
- Red datum numerals for surveying applications
- Separate datum boards
- Direct print options
Bespoke manufactured sizes and layouts are also available depending on project requirements.
