Interpretation Panel & Lectern Systems

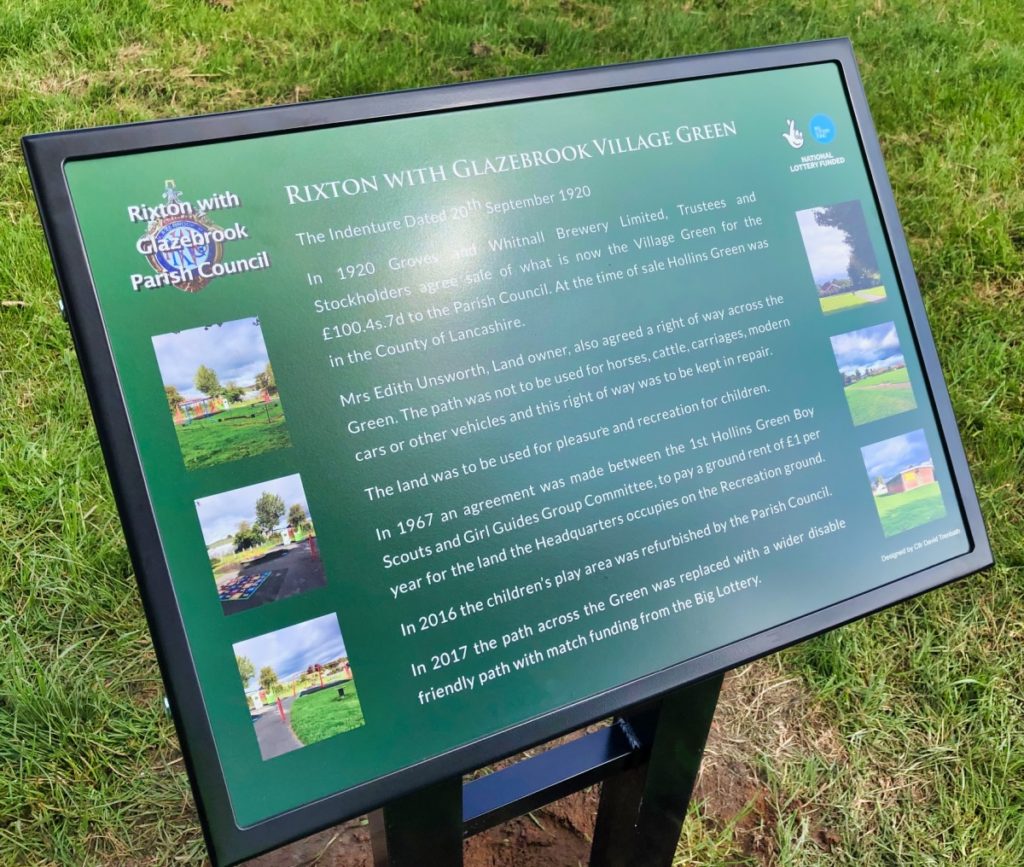

Predominantly specified across heritage sites, visitor attractions, parks and nature reserves, NOVADURA interpretation panels and lectern systems are manufactured for long-term external performance in public-facing environments.

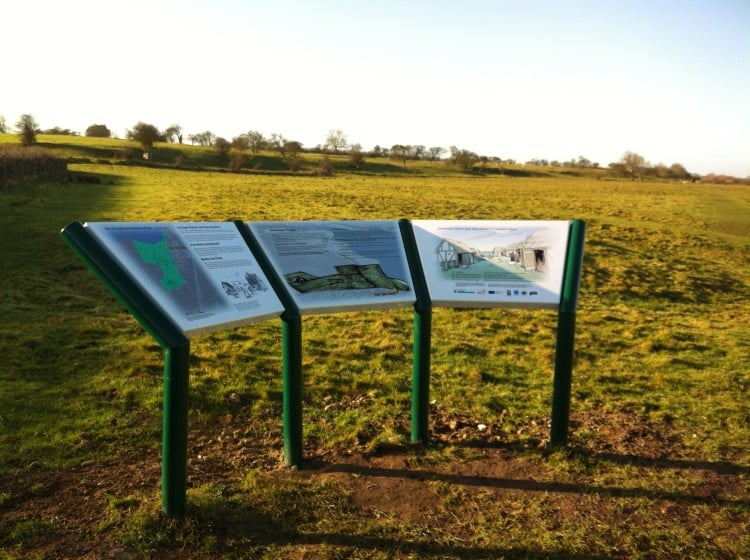

Standard systems are typically manufactured at a 45° viewing angle and are available in a wide range of formats including cantilever, inclined, framed and pedestal lecterns, along with bespoke fabricated configurations tailored to project requirements.
NOVADURA interpretation systems are manufactured using durable 3mm and 5mm primaDURA aluminium tray systems alongside ecoDURA High Pressure Laminate (HPL) panel options depending on installation and environmental requirements.
These systems are widely used for interpretation, wayfinding and public information applications across exposed and high-traffic environments.
Woodgrain & Bespoke Lectern Systems

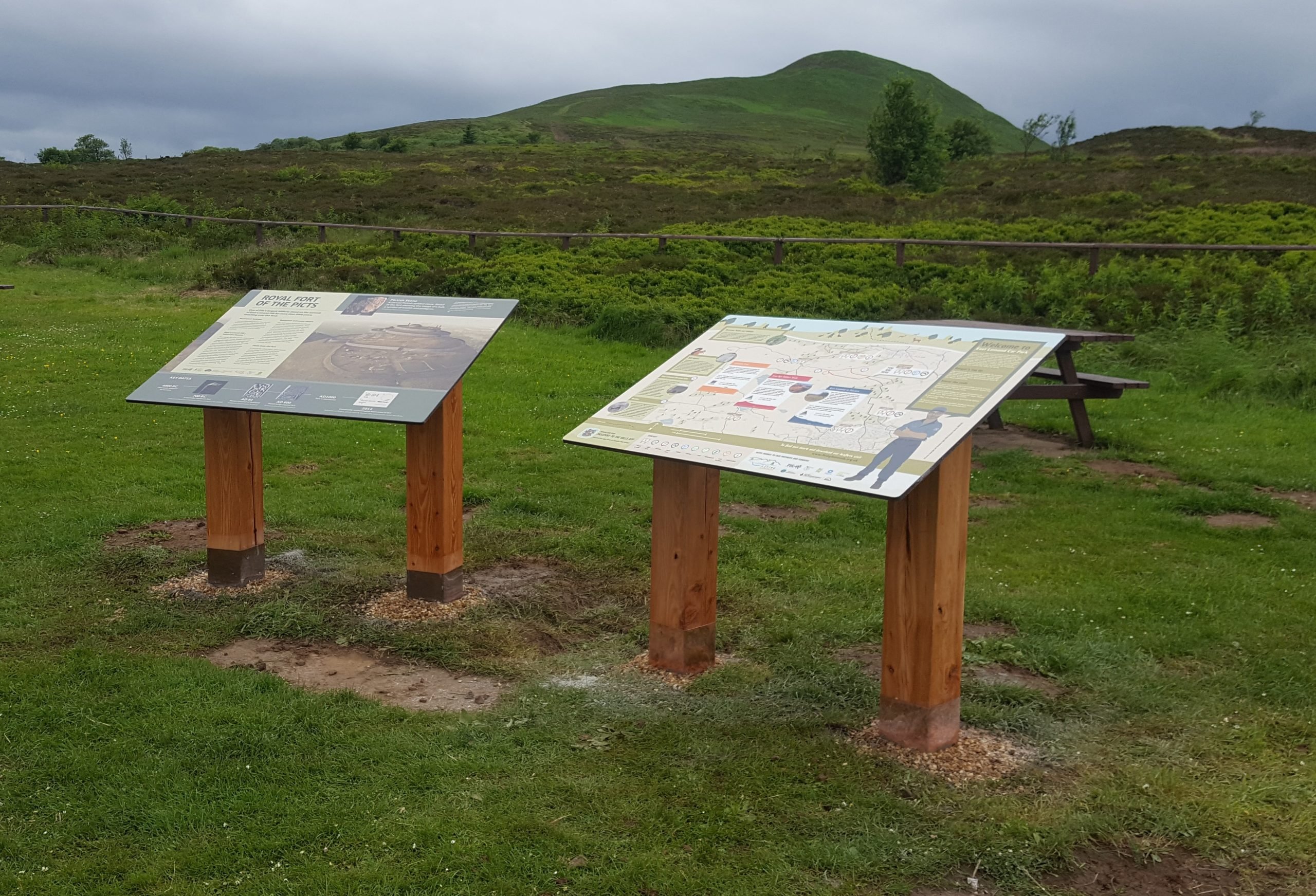

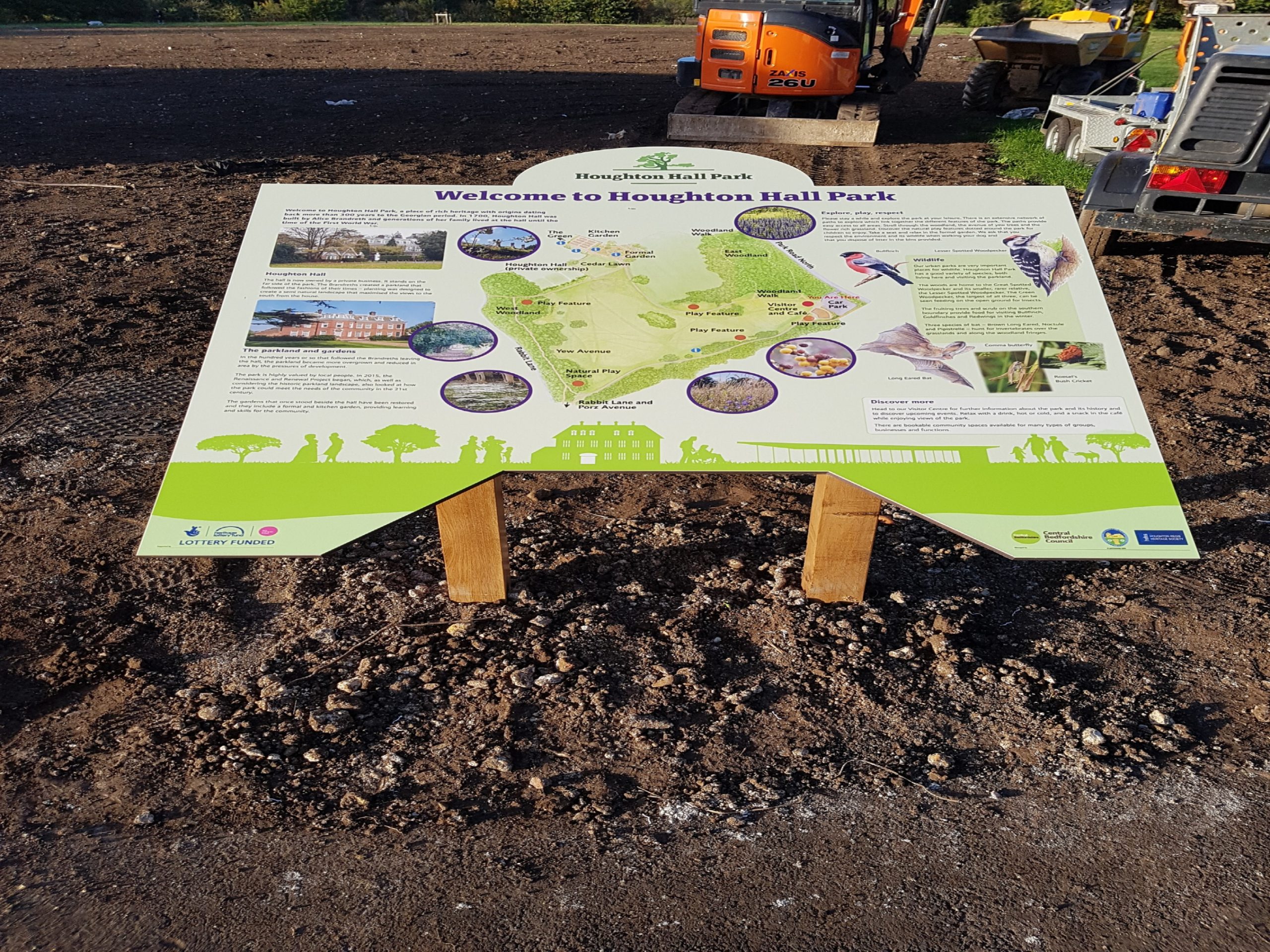

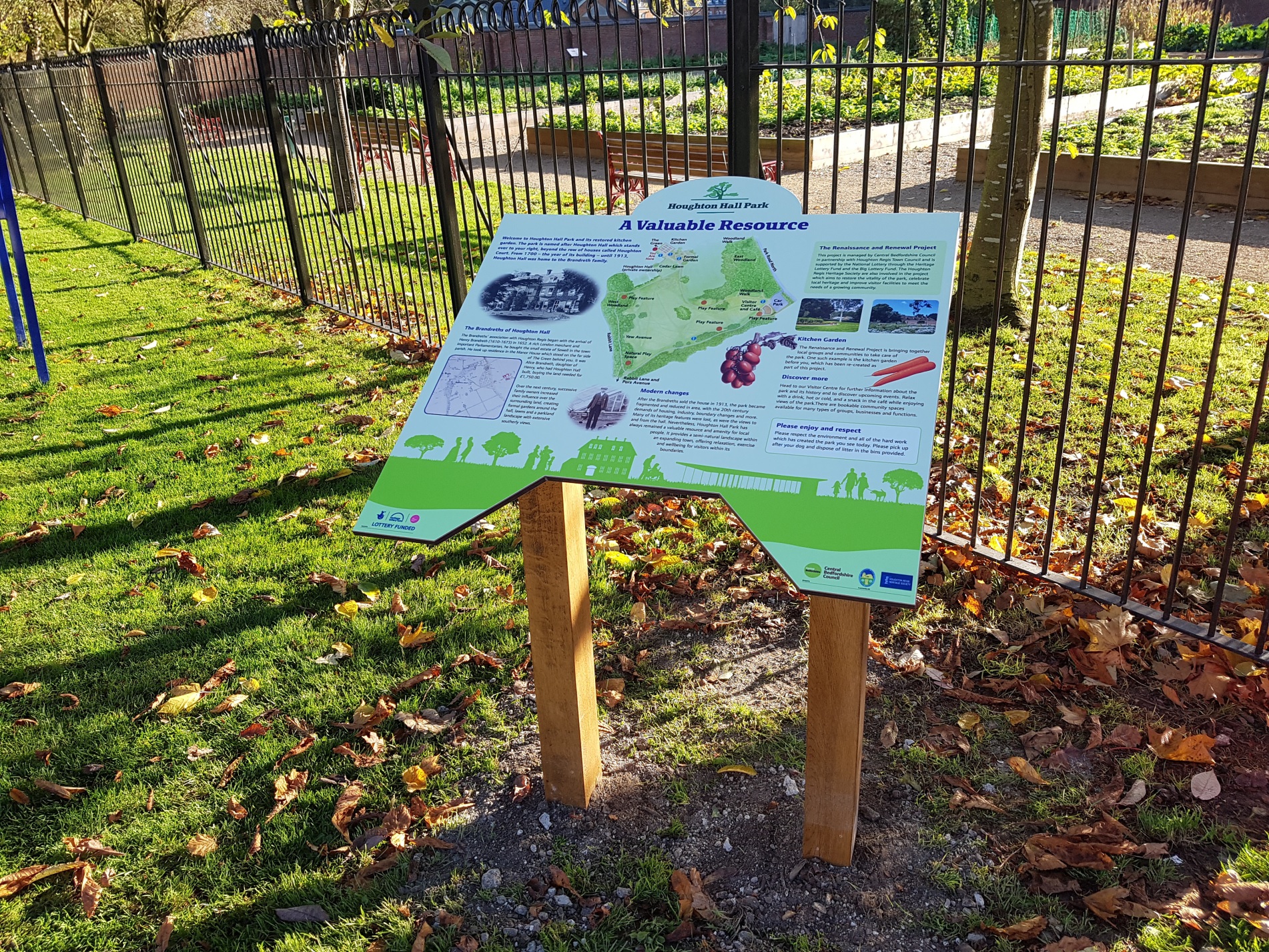

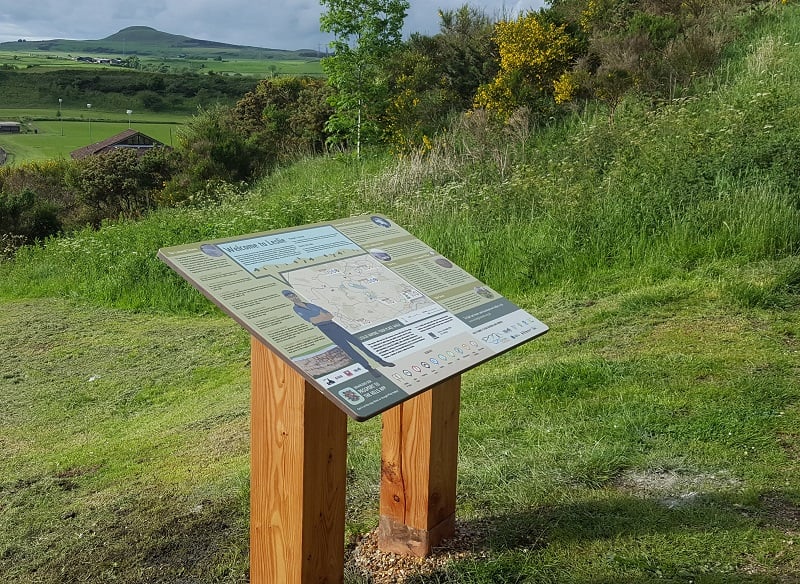

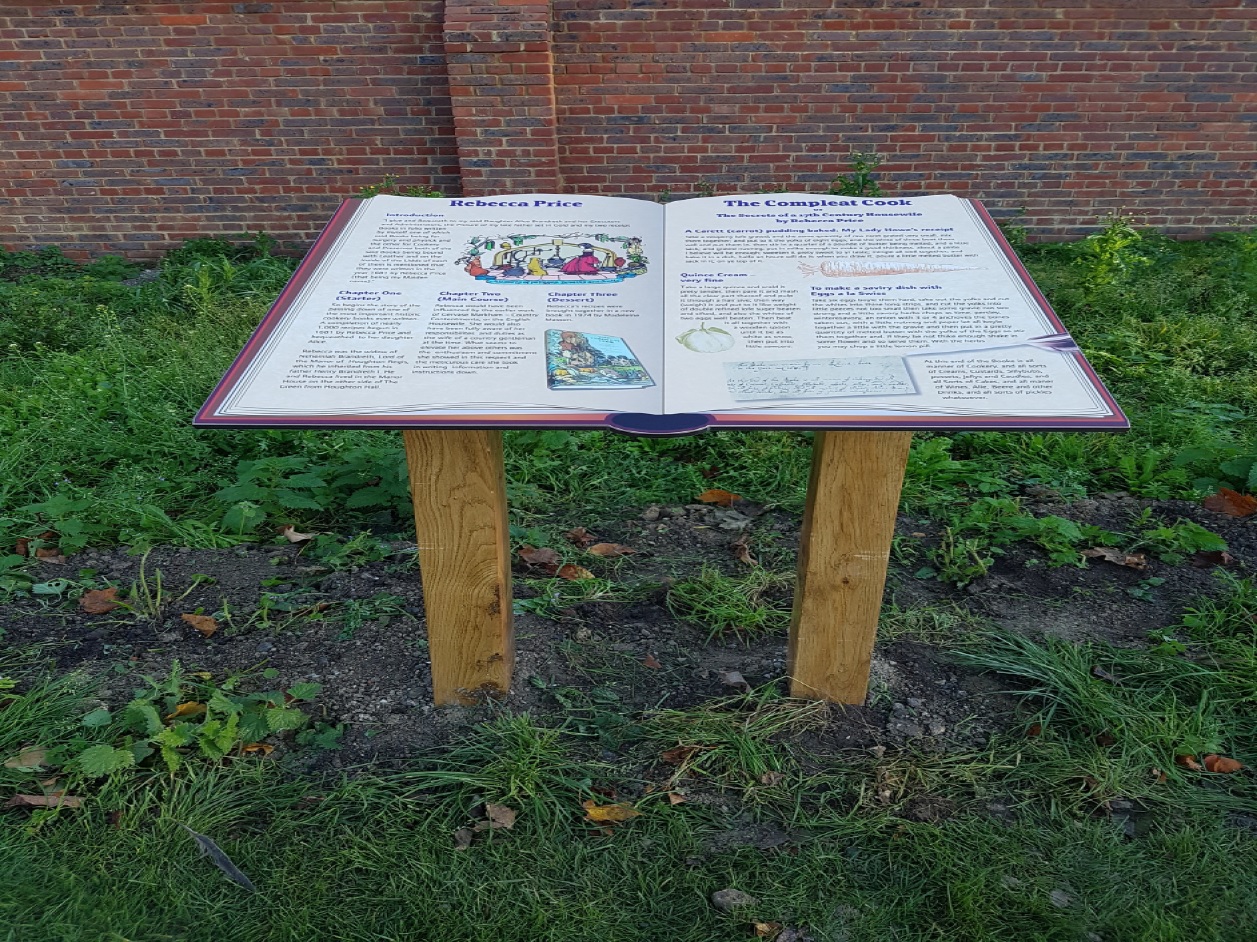

NOVADURA also manufactures deconstructed lectern systems combining the appearance of timber with the durability and stability of engineered aluminium systems.
Manufactured using advanced dye sublimation technology, reproDURA woodgrain finishes are specifically developed to complement primaDURA interpretation panels and are supported by a 10-year external warranty.
With a library of over 100 woodgrain finishes available, systems can be tailored for heritage environments, coastal paths, visitor attractions, public realm projects and nature reserves.
Unlike surface-applied films or wraps, the sublimation process embeds the woodgrain finish within the coating system itself, helping maintain a consistent appearance across exposed and high-traffic environments.

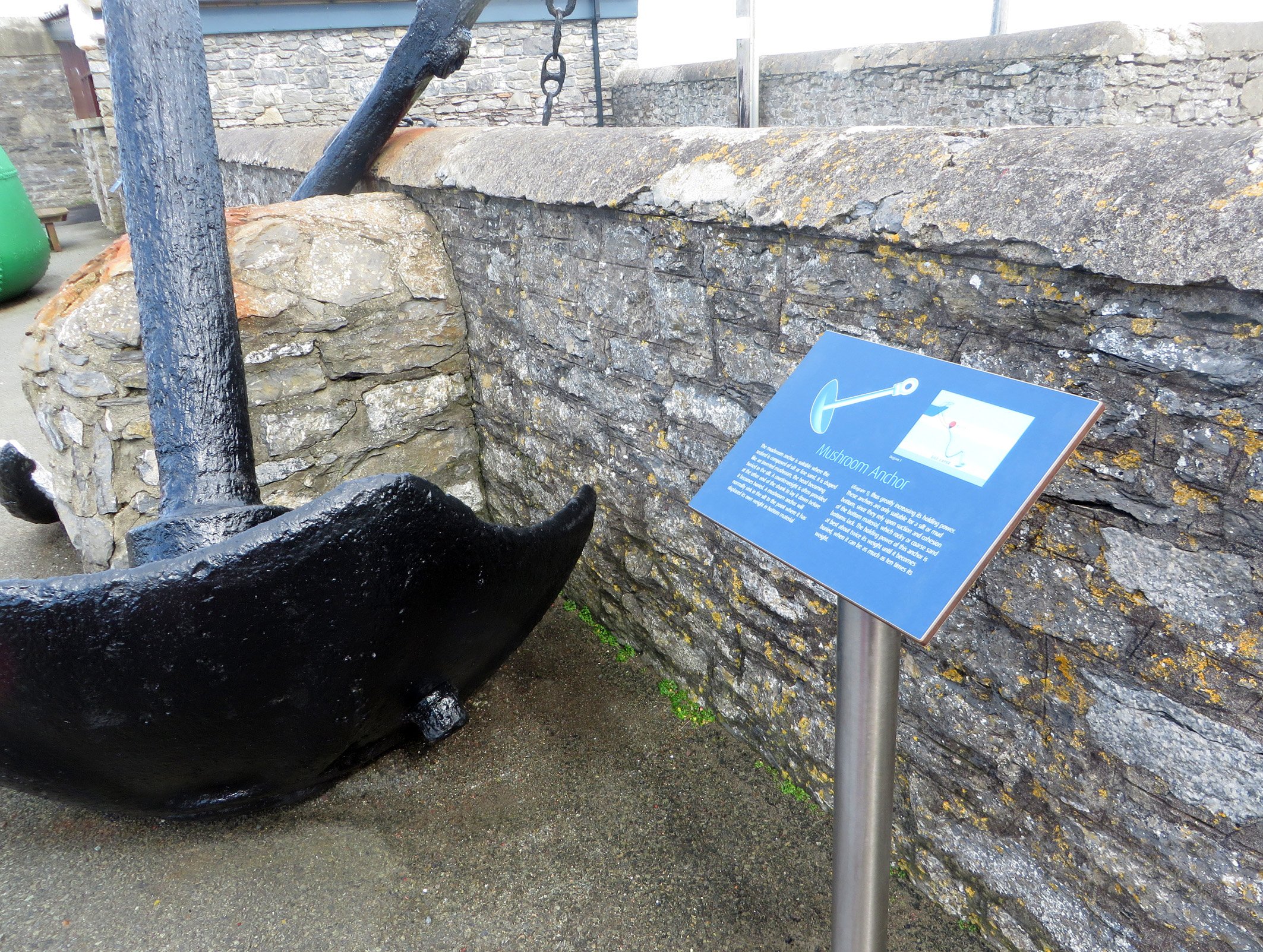

Interpretation panels and lectern systems can also be manufactured as post mounted information displays and public wayfinding systems for wider visitor environment applications.
Systems are commonly specified for museums, heritage attractions, visitor centres, wildlife reserves and coastal interpretation projects requiring durable low-maintenance external signage.
Timescales
15 - 20 Working Days
Sizes
NOVADURA inclined tray systems feature front and rear returns angled parallel with the supporting post system to assist rainwater runoff and reduce water collection on reverse surfaces.
Panels are secured to a robust 5mm backing plate welded directly to the selected post system, with base plate fixing options available for installation into concrete or prepared groundworks.
Standard leg systems are manufactured to approximately 1.6m overall length with a typical 500mm ground fixing depth, leaving approximately 1m above finished ground level to assist accessibility and wheelchair access beneath the lectern.

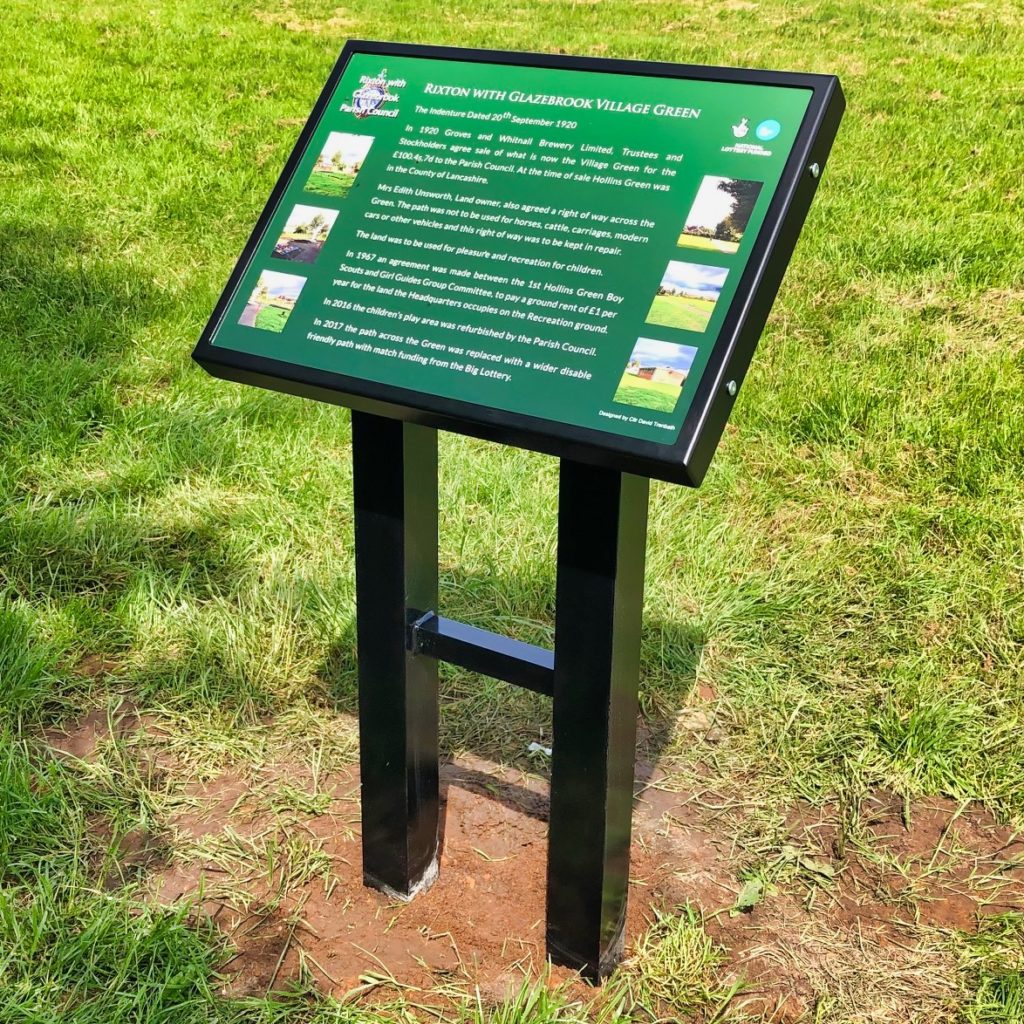

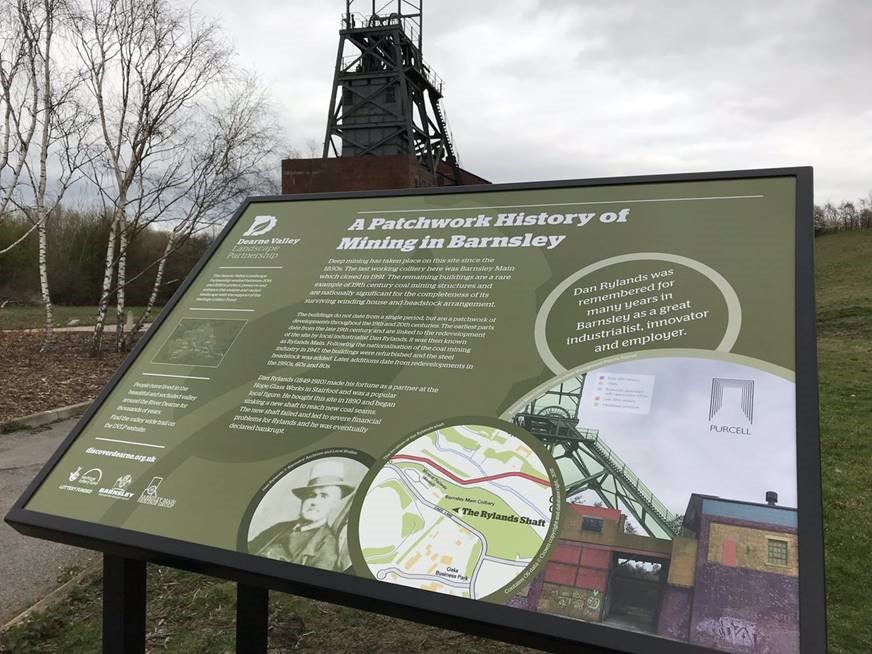

NOVADURA can also manufacture “picture frame” style lectern systems where flat interpretation panels are retained within a framed structure mounted to the supporting post system.
This configuration is particularly suited to applications where panels may require future replacement or seasonal graphic changes whilst retaining the existing frame and support structure.
Picture frame systems can incorporate both primaDURA aluminium and ecoDURA High Pressure Laminate (HPL) panel options depending on project requirements.
NOVADURA lectern and interpretation systems are available in a range of material finishes and support structures depending on environmental, aesthetic and operational requirements.
Options include primaDURA aluminium, ecoDURA High Pressure Laminate (HPL), reproDURA decorative woodgrain finishes and selected stainless steel fabrication systems for specialist architectural applications.
Bespoke fabrication options are available on request to suit project-specific installation and design requirements.
